Description

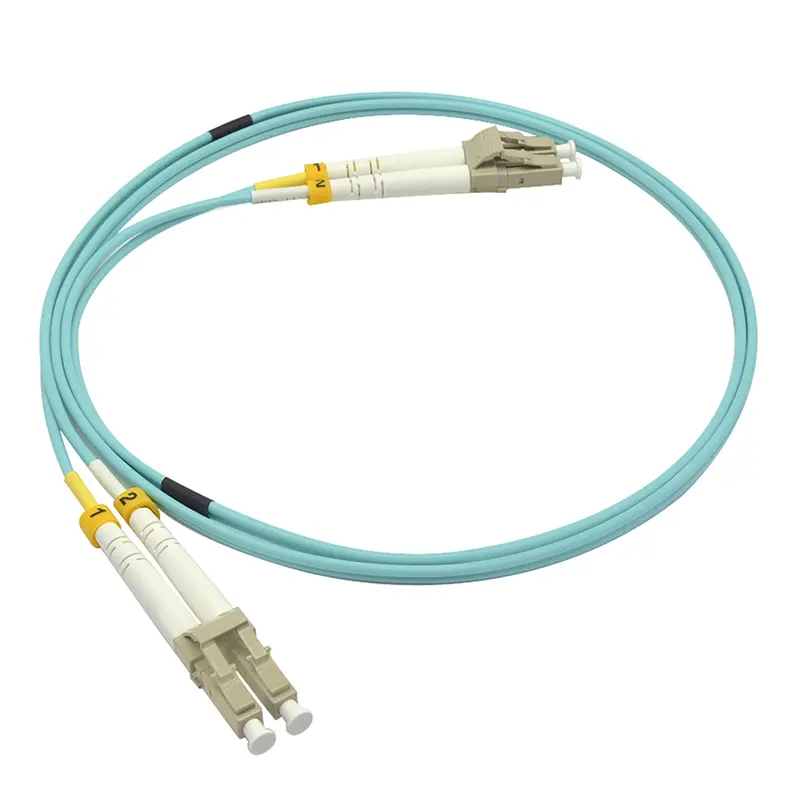

LC/UPC-LC/UPC 10Gb 50/125 OM4 Multimode Duplex Fiber Optic Cable Aqua.

The LC/UPC-LC/UPC 10Gb 50/125 OM4 Multimode Duplex Fiber Optic Cable in aqua provides reliable, high-speed connectivity for modern network infrastructures. Featuring OM4 multimode fiber with a 50/125 micron core and cladding, it supports 10Gbps data transfer rates over extended distances. The duplex design enables simultaneous transmission and reception, while LC/UPC connectors ensure precise alignment and minimal signal loss. This cable is optimized for data centers, enterprise networks, and high-performance applications demanding consistent optical performance.

* Our high-quality OM4 multi-mode fiber cable with LC/LC connectors is perfect for high-throughput applications.
* OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
* With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
* Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters.
* LSZH/OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
* The small LC connector is perfect for high-density network applications.
* Use with LED and VCSEL laser light sources.
* Backward compatible with LED-based 50/125 multimode fiber applications.
* Corning® glass 50μm core and 125μm cladding.
* Test report included in each cable package.
* UL Listed

Connector Type: LC-LC Multimode
Polishing: UPC to UPC
Return Loss: ≥ 55 dB
Insertion Loss: ≤ 0.30 dB
Cabled Optical Fiber: OM4
Nominal Diameter Core: 50/125 µm
Jacket Material: OFNR/LSZH
Jacket Color: Aqua
