Description

OM4 MTP® UPC 50/125 Female to Female Multimode 12 Fibers Optic Cable Plenum Type B.

This OM4 MTP® UPC multimode fiber optic cable features 12 fibers with a 50/125 µm core/cladding diameter, designed for high-speed data transmission in advanced network environments. Its female-to-female connectors ensure reliable, low-loss connections, while the plenum-rated Type B jacket offers enhanced fire resistance for safe installation in air-handling spaces. Ideal for data centers and enterprise networks, this cable supports high bandwidth and extended reach with excellent signal integrity.

* MTP® OM4 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.
* OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
* With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
* Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters.
* OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
* The MTP® connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance.

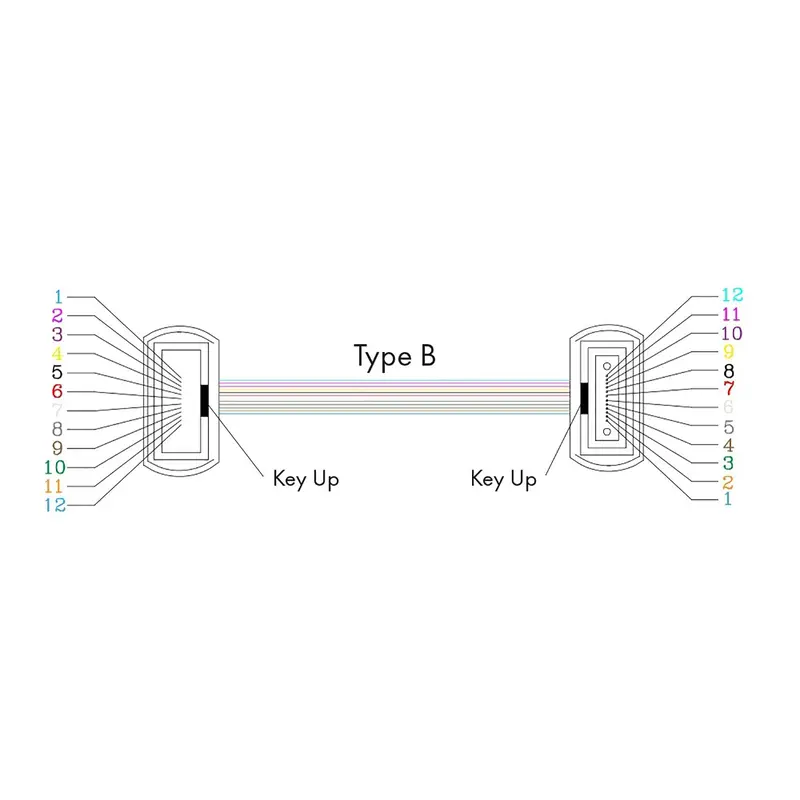

* Connection type B (Reverse), key up to key up.
* Use LED and VCSEL laser light sources.
* Corning® glass 50μm core and 125μm cladding.
* 100% Tested with report included in each cable package.
* Dust protective cap included
* UL listed

Fiber Connector A: US Conec MTP® Female
Fiber Connector B: US Conec MTP® Female
Fiber Mode: OM4, Multimode, 50 / 125
Fiber Count: 12 Fibers
Polish Type: UPC to UPC
Wavelength: 850nm/1300nm
Insertion Loss: < 0.3 dB
Return Loss: > 20 dB
Type (Method): Type B
Jacket OD: 3.0 mm
Jacket Material: OFNP (Plenum) Jacket
Color: Aqua
