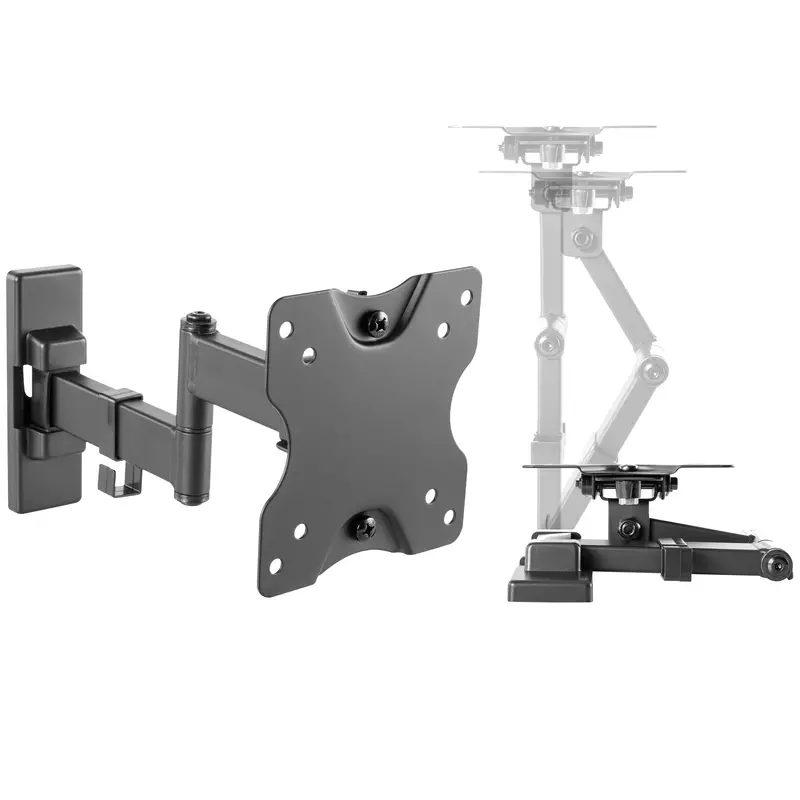

13″~27″ Economy Full-Motion TV Wall Mount w/10.4″ Arm LDA21-112

Features:

The LDA21-112 is a full-motion wall mount for most 13”-27” LED, LCD flat panel TVs up to 20Kgs/44lbs . It allows smooth, effortless tilt motion that makes it easy to reduce glare and find the perfect TV angle at any height. Full motion allow maximum flexibility — extend, tilt and swivel your TV up to 263mm from the wall in every direction for easy viewing from any seat in a room. This pre-assembled arm comes complete with cable clips and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. It is compatible with VESA hole up to 100×100.

* Material: Steel, Plastic
* Color: Matte Black
* Surface Finish: Powder Coating
* Metal Sheet Thickness: Wall Plate THK 2.5mm; VESA Panel THK: 1.5mm
* Compatible Screen Size*: 13″~27″
* Dimensions: 10.4″x4.6″x5.4″ (263x118x136mm)
* Max VESA: (200x200mm)
* Weight Capacity: 44Lbs (20kg)
* Arm Profile: 50~263mm (2″~10.4″)
* Tilt Range: 5°~12°
* Swivel Range: -90°~+90°
* Installation: Solid Wall, Single Stud
* Panel Type: Detachable Panel
* Wall Plate Type: Fixed Wall Plate
* Cable Management: Yes
* Anti-Theft: No

* Note: Supported screen size is provided as a reference only. Please check the bracket dimensions above and make sure the overall bracket size does not exceed your TV.
