Canton Black Oil Pan For Honda D16A Series – Road Race T-Sump Design

Description

This black powder coat steel “T”-sump Honda D16A oil pan is designed for use in performance street, drag racing and road racing applications. The stock depth, 12-1/2″ wide by 8-1/2″ long sump has a 5 quart system capacity. Pan works with most aftermarket and stock exhausts. This pan requires our 15-961 pickup.

• 5 qt System Capacity

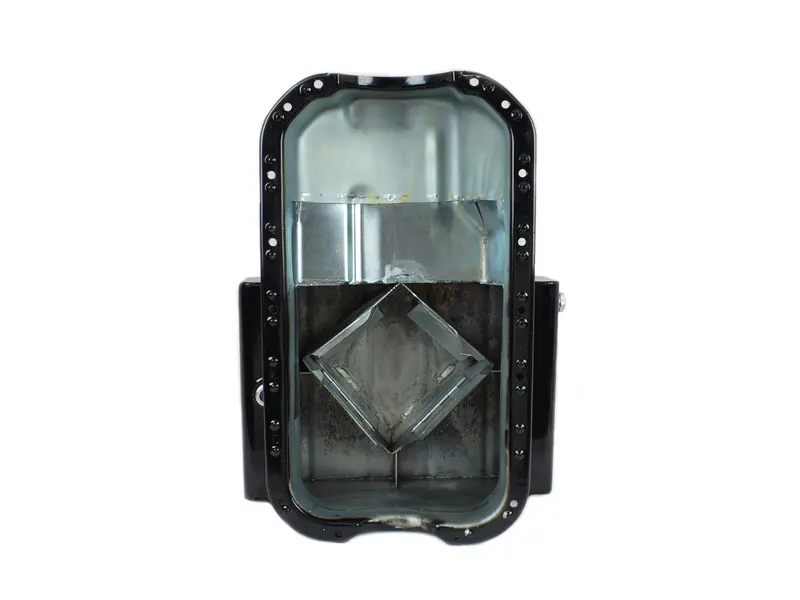

• Diamond Shape Road Race Baffle Assembly With Four Trap Doors
• 1/2″ NPT Temperature Bung
• Magnetic Drain Plug

Attributes:

• Brand Name: Canton
• GTIN: 00887753713964
• Baffled: Yes
• Capacity: 5 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: No
• Drain Plug Included: Yes
• Feature 1: 5 qt System Capacity
• Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
• Feature 3: 1/2″ NPT Temperature Bung
• Feature 4: Magnetic Drain Plug
• Feature 5: Black Powdercoat
• Finish: Black Powdercoat
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 15-961 – Pickup for Honda Late D16A Oil Pump
• Windage Tray Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 12 POUNDS
