Description

[additional] Data Sheet [/additional]

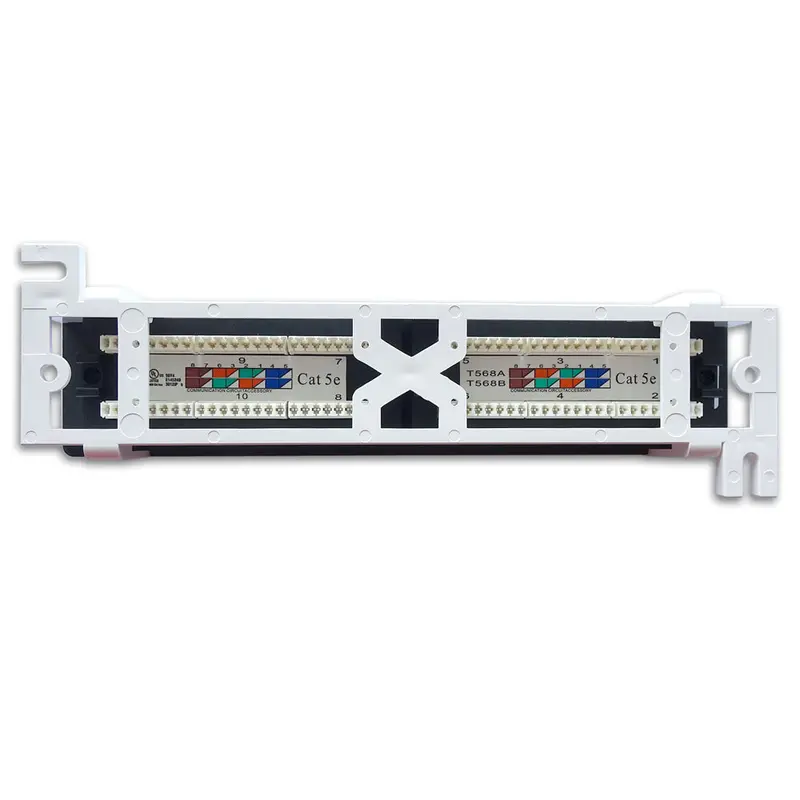

Cat5E 110 Type Patch Panel 12Port Vertical w/Bracket.

* Mounting Bracket Included
* UL listed
* Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification
* Support T568A : B wiring
* Wire diameter : 22 ~ 26AWG
* Insulation diameter range : 0.70 to 1.40mm
* Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.
* IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.
* Safety : UL1863
* Flamability : UL 94 VO
* Operating temperature : -40 to +70 dgree Celsius
* Weight : 0.85LBS
* 25 years warranty
* Carton qty: 24
* Carton weight: 23 LBS
* Dimensions : 10″(H) x 2 1/4″ (W) x 1 3/4″ (D)
